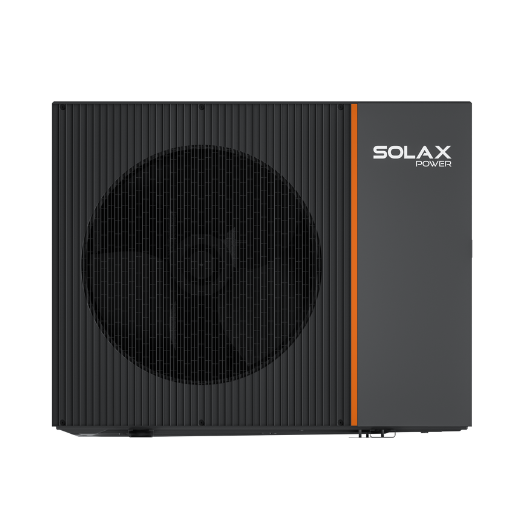

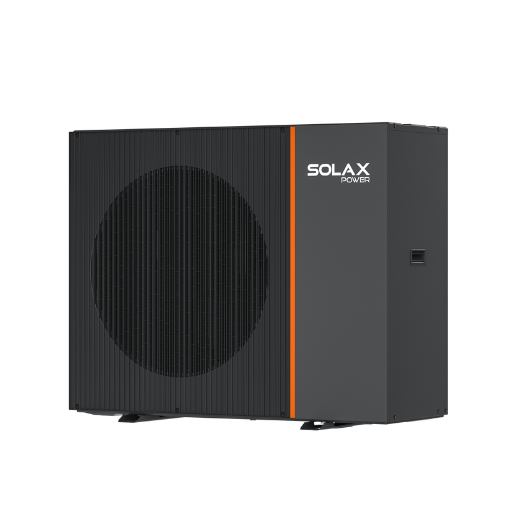

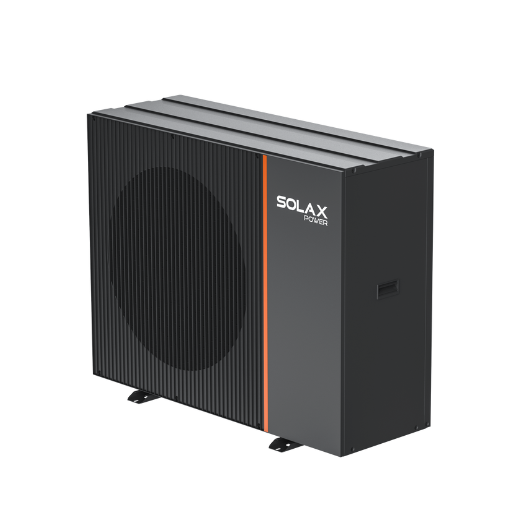

Luft-till-vatten Värmepump

SolaX Termiskt R290-serien

SolaX luft-till-vatten-värmepumpen är kompatibel med både PV och ESS, har smart temperaturstyrning och finns i tre flexibla inomhusalternativ. Hydraulisk integrerad enhet, hydraulisk enhet eller styrenhet.  Med elegant europeisk design och smart användarvänlighet är den en perfekt lösning för dagens moderna energibehov.

Produktfördel

SolaX Termiskt R290-serien är konstruerad med ett avancerat bullerreduceringssystem som inkluderar 700 mm biomimetiska fläktblad, en dubbeldämpande struktur och ett flerskiktat ljudisolerande hölje. Tillsammans ger dessa funktioner en nästintill ljudlös drift – perfekt för stadsmiljöer och andra ljudkänsliga områden.

Kontakta oss

Miljövänlig

  • R290 naturligt köldmedium, lågt GWP och en koldioxidsnål livsstil

  • Extremt tyst drift med låg ljudnivå


Smart styrning

  • Smart App-kontroll stödjer fjärrövervakning, drift och OTA uppdateringar

  • Borstlös DC-motor möjliggör steglös hastighetsreglering



Hög prestanda

  • Integrerad med PV och ESS för att maximera egenförbrukningen av grön energi

  • SCOP-nivå: A+++

  • Maximal utgående vattentemperatur på 80°C



Flexibilitet

  • Finns i 5 kapacitetsstorlekar (8 till 16 kW), lämplig för renoveringar och stora nybyggnader

  • Mycket kompatibel, SG-klar, stöd för Modbus TCP/RTU

  • Uppvärmning + Kylning + Varmvatten (DHW)



Produktparametrar

  • STU1-C08R290
  • STU1-C10R290
  • STU1-C12R290
  • STU1-C14R290
  • STU1-C16R290
  • STU3-C08R290
  • STU3-C10R290
  • STU3-C12R290
  • STU3-C14R290
  • STU3-C16R290
  • Control Unit STN1-C01
  • Hydraulic Unit STN1-C02
  • Hydraulic Unit STN3-C02
  • Hydraulic Integrated Unit STN1-C03
  • Hydraulic Integrated Unit STN3-C03
  • STU1-C08R290
    • Electrical Specifications
      Power supply220 ~ 240 V / 1N~ / 50 Hz
      SCOP-LWT at 35°C
      		5.44
      SCOP-LWT at 55°C4.12
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.2 kg
      Sound pressure level at 1m
      		35 dB(A)
      Sound pressure level at 3m
      		32 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight140kg


  • STU1-C10R290
    • Electrical Specifications
      Power supply220 ~ 240 V / 1N~ / 50 Hz
      SCOP-LWT at 35°C
      		5.30
      SCOP-LWT at 55°C4.07
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.2 kg
      Sound pressure level at 1m
      		35 dB(A)
      Sound pressure level at 3m
      		32 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight140kg


  • STU1-C12R290
    • Electrical Specifications
      Power supply220 ~ 240 V / 1N~ / 50 Hz
      SCOP-LWT at 35°C
      		5.07
      SCOP-LWT at 55°C3.89
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.5 kg
      Sound pressure level at 1m
      		37 dB(A)
      Sound pressure level at 3m
      		34 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight154kg


  • STU1-C14R290
    • Electrical Specifications
      Power supply220 ~ 240 V / 1N~ / 50 Hz
      SCOP-LWT at 35°C
      		4.94
      SCOP-LWT at 55°C3.84
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.5 kg
      Sound pressure level at 1m
      		38 dB(A)
      Sound pressure level at 3m
      		35 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight154kg


  • STU1-C16R290
    • Electrical Specifications
      Power supply220 ~ 240 V / 1N~ / 50 Hz
      SCOP-LWT at 35°C
      		4.90
      SCOP-LWT at 55°C3.83
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.5 kg
      Sound pressure level at 1m
      		38 dB(A)
      Sound pressure level at 3m
      		35 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight154kg


  • STU3-C08R290
    • Electrical Specifications
      Power supply380 ~ 415 V / 3N~ / 50 Hz
      SCOP-LWT at 35°C
      		5.44
      SCOP-LWT at 55°C4.12
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.2 kg
      Sound pressure level at 1m
      		35 dB(A)
      Sound pressure level at 3m
      		32 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight151kg


  • STU3-C10R290
    • Electrical Specifications
      Power supply380 ~ 415 V / 3N~ / 50 Hz
      SCOP-LWT at 35°C
      		5.30
      SCOP-LWT at 55°C4.07
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.2 kg
      Sound pressure level at 1m
      		35 dB(A)
      Sound pressure level at 3m
      		32 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight151kg


  • STU3-C12R290
    • Electrical Specifications
      Power supply380 ~ 415 V / 3N~ / 50 Hz
      SCOP-LWT at 35°C
      		5.07
      SCOP-LWT at 55°C3.89
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.5 kg
      Sound pressure level at 1m
      		37 dB(A)
      Sound pressure level at 3m
      		34 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight165kg


  • STU3-C14R290
    • Electrical Specifications
      Power supply380 ~ 415 V / 3N~ / 50 Hz
      SCOP-LWT at 35°C
      		4.94
      SCOP-LWT at 55°C3.84
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.5 kg
      Sound pressure level at 1m
      		38 dB(A)
      Sound pressure level at 3m
      		35 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight165kg


  • STU3-C16R290
    • Electrical Specifications
      Power supply380 ~ 415 V / 3N~ / 50 Hz
      SCOP-LWT at 35°C
      		4.90
      SCOP-LWT at 55°C3.83
      Refrigerant-Type/GWP
      		R290/3
      Refrigerant-Charged volumn
      		1.5 kg
      Sound pressure level at 1m
      		38 dB(A)
      Sound pressure level at 3m
      		35 dB(A)
      Water outlet-Heating25~80 °C
      Water outlet-Cooling
      		5~25 °C
      Water outlet-DHW
      		25~70 °C


    • Mechanical Specifications
      Dimensions (W × H × D)1310 × 1050 × 465 mm
      Weight165kg

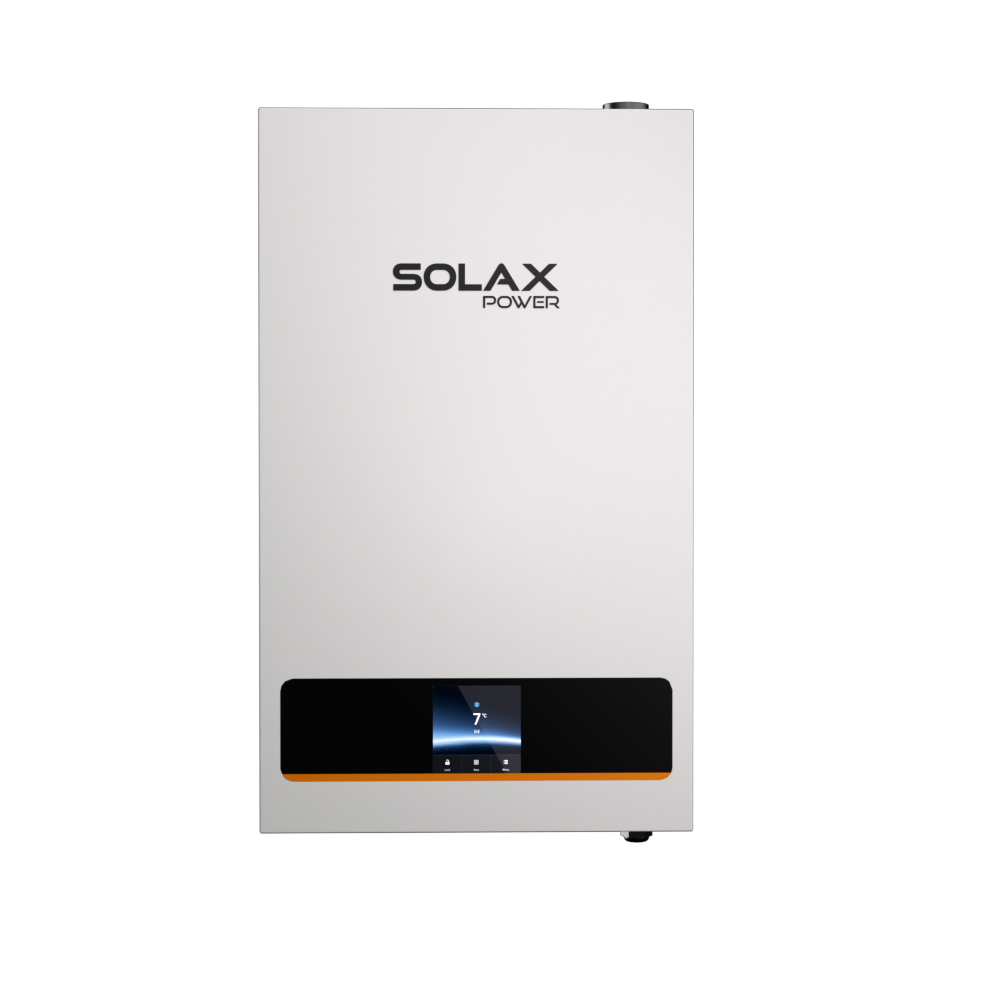

  • Control Unit STN1-C01
    Control Unit STN1-C01
    • Electrical Specifications
      Power supply220 ~ 240 V / 1N~ / 50 Hz
      Rated current0.1A


    • Interface & Communication
      User interface4 inch high-resolution touch panel
      CommunicationWiFi/Ethernet/RS485


    • Installation & Mechanical Specifications
      InstallationWall mounting
      Dimensions (W × H × D)340 × 400 × 80 mm
      Weight6.5 kg

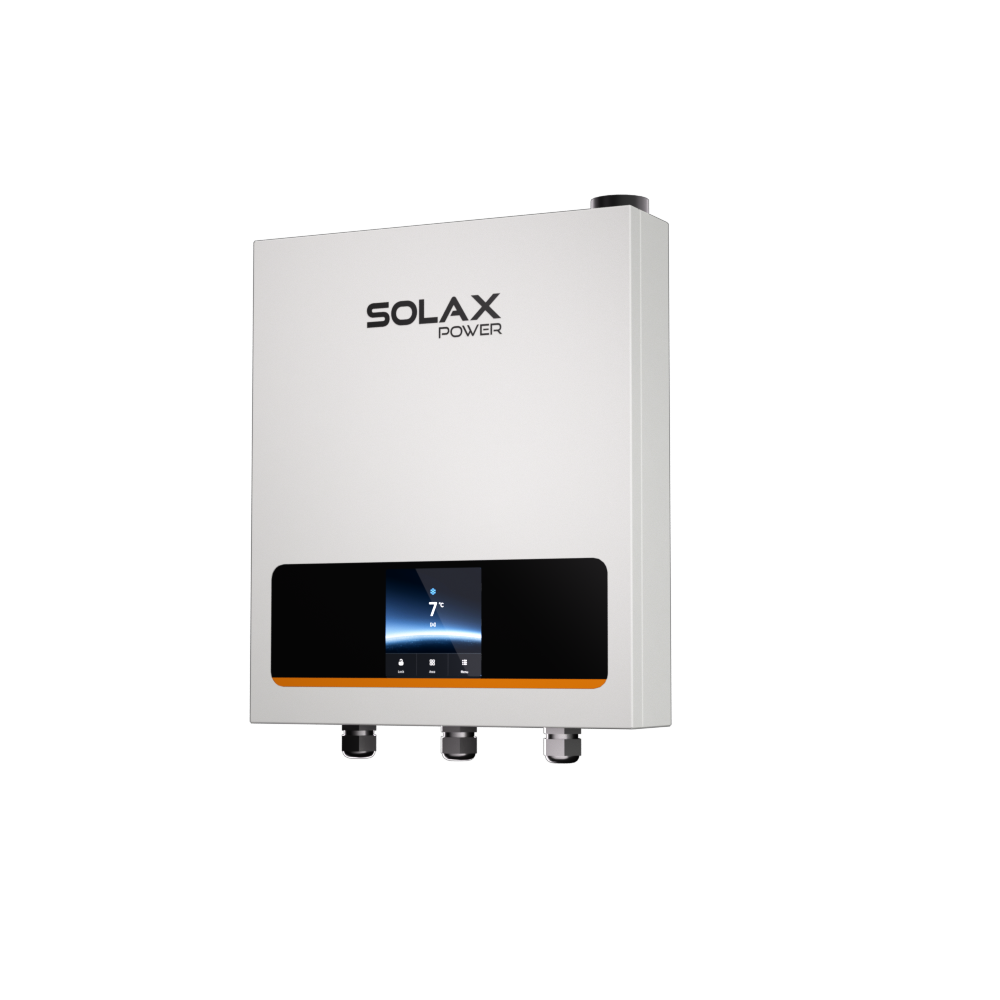

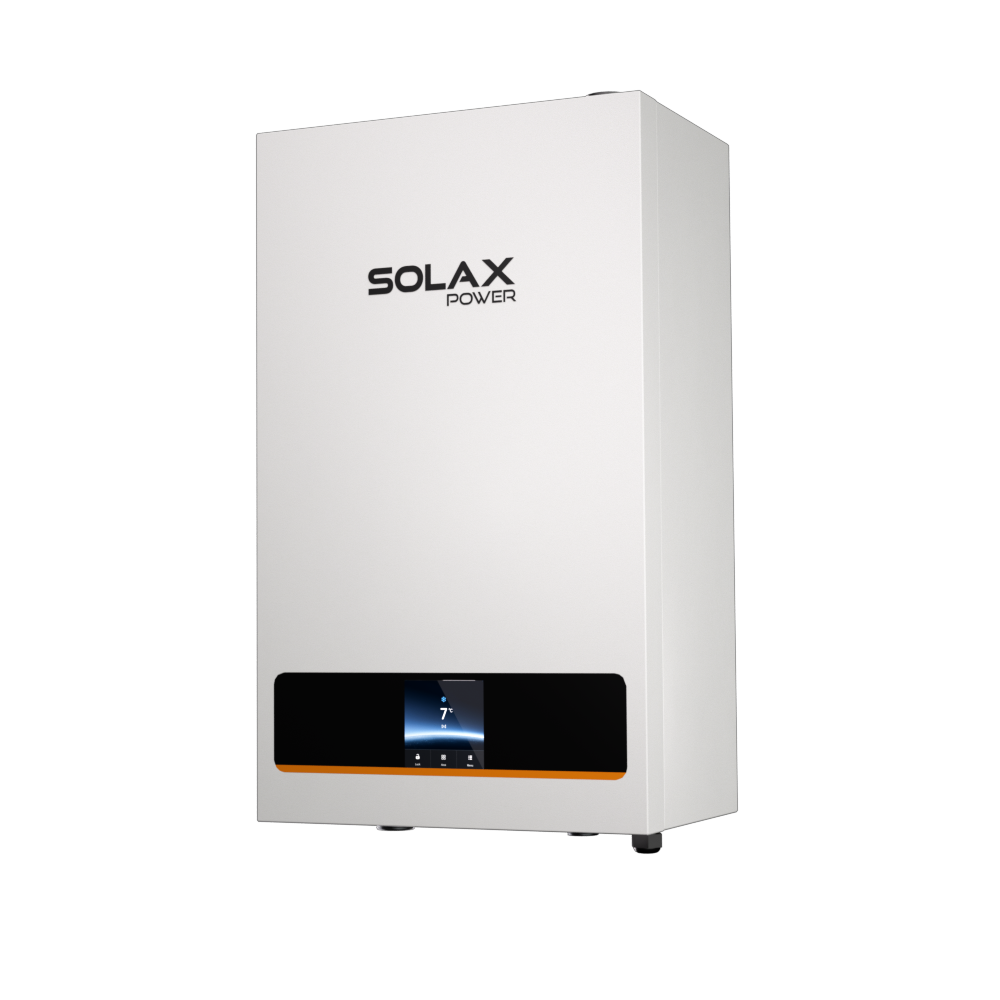

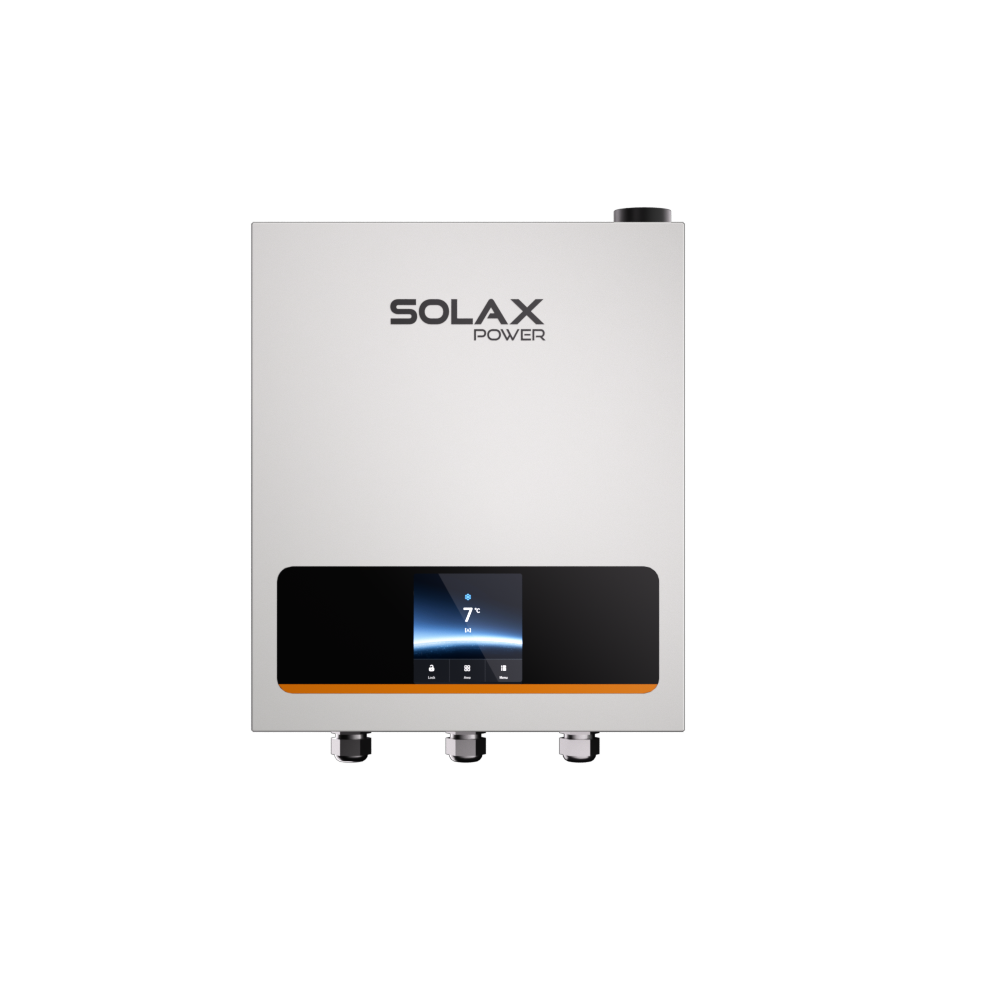

  • Hydraulic Unit STN1-C02
    • Electrical Specifications
      Power supply220~240 V / 1N~ / 50 Hz
      Rated current39.5 A


    • Interface & Communication
      User interface4 inch high-resolution touch panel
      CommunicationWiFi/Ethernet/RS485


    • Installation & Mechanical Specifications
      InstallationWall mounting
      Dimensions (W × H × D)420x700x265 mm
      Weight33 kg


  • Hydraulic Unit STN3-C02
    • Electrical Specifications
      Power supply380 ~ 415 V / 3N~ / 50 Hz
      Rated current13.5A


    • Interface & Communication
      User interface4 inch high-resolution touch panel
      CommunicationWiFi/Ethernet/RS485


    • Installation & Mechanical Specifications
      InstallationWall mounting
      Dimensions (W × H × D)420x700x265 mm
      Weight33 kg

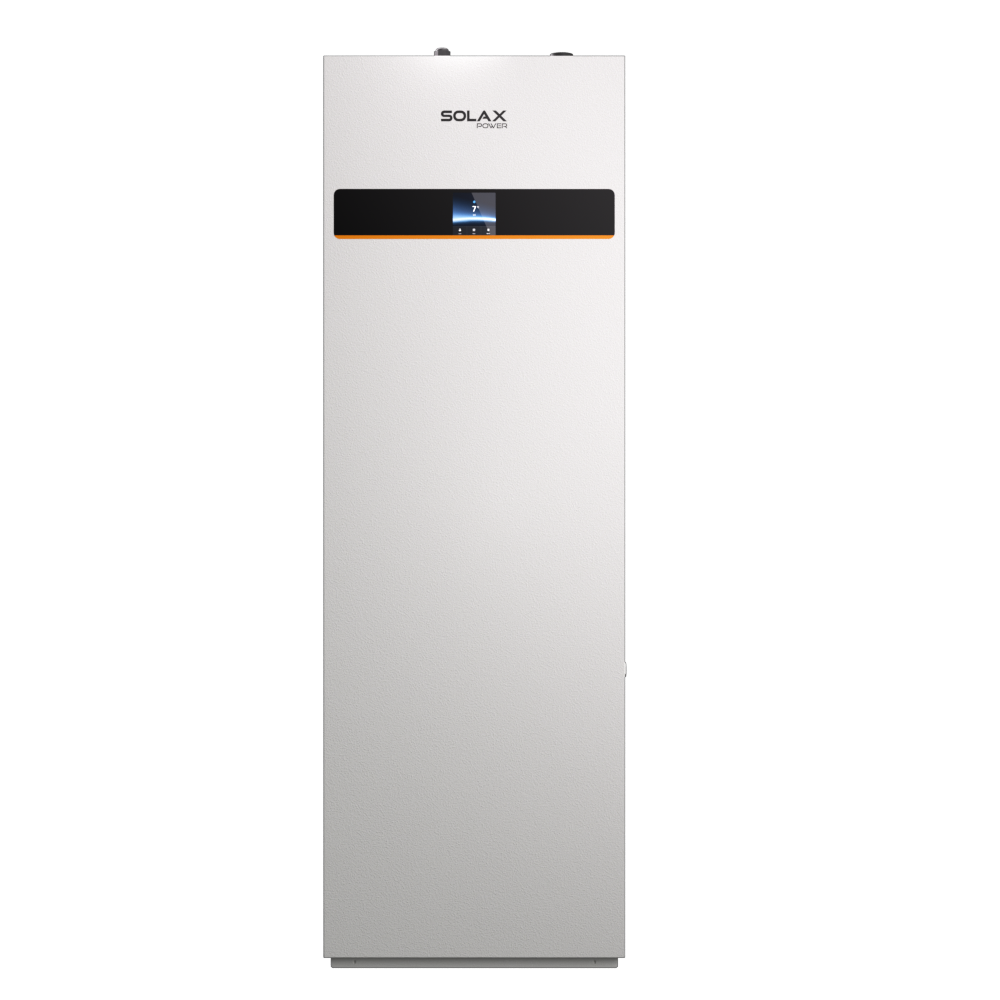

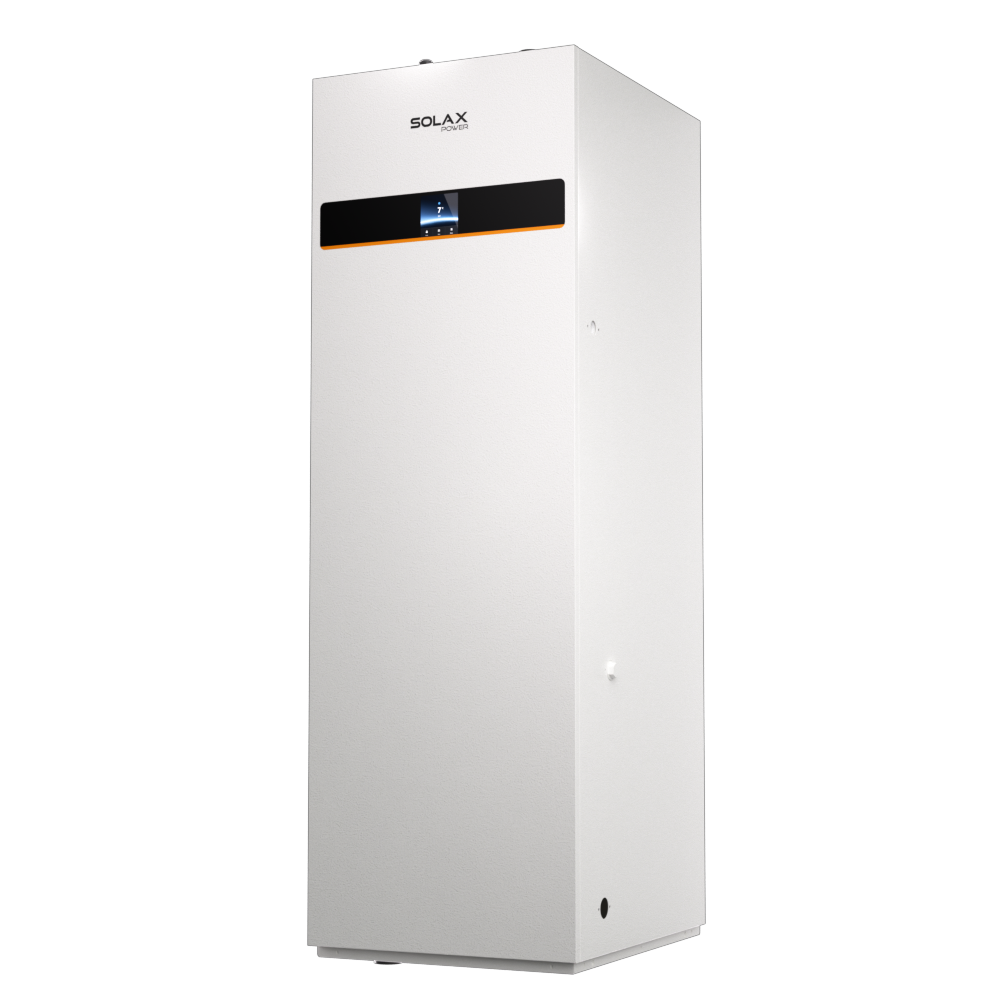

  • Hydraulic Integrated Unit STN1-C03
    • Electrical Specifications
      Power supply220 ~ 240 V / 1N~ / 50 Hz
      Rated current52.3 A


    • Interface & Communication
      User interface4 inch high-resolution touch panel
      CommunicationWiFi/Ethernet/RS485


    • Installation & Mechanical Specifications
      InstallationFloor stand
      Dimensions (W × H × D)595 × 1875 × 700 mm
      Weight186 kg


  • Hydraulic Integrated Unit STN3-C03
    Hydraulic Integrated Unit STN3-C03
    • Electrical Specifications
      Power supply380~415V/3N~/50HZ
      Rated current17.5 A


    • Interface & Communication
      User interface4 inch high-resolution touch panel
      CommunicationWiFi/Ethernet/RS485


    • Installation & Mechanical Specifications
      InstallationFloor stand
      Dimensions (W × H × D)595x1875x700 mm
      Weight186 kg
